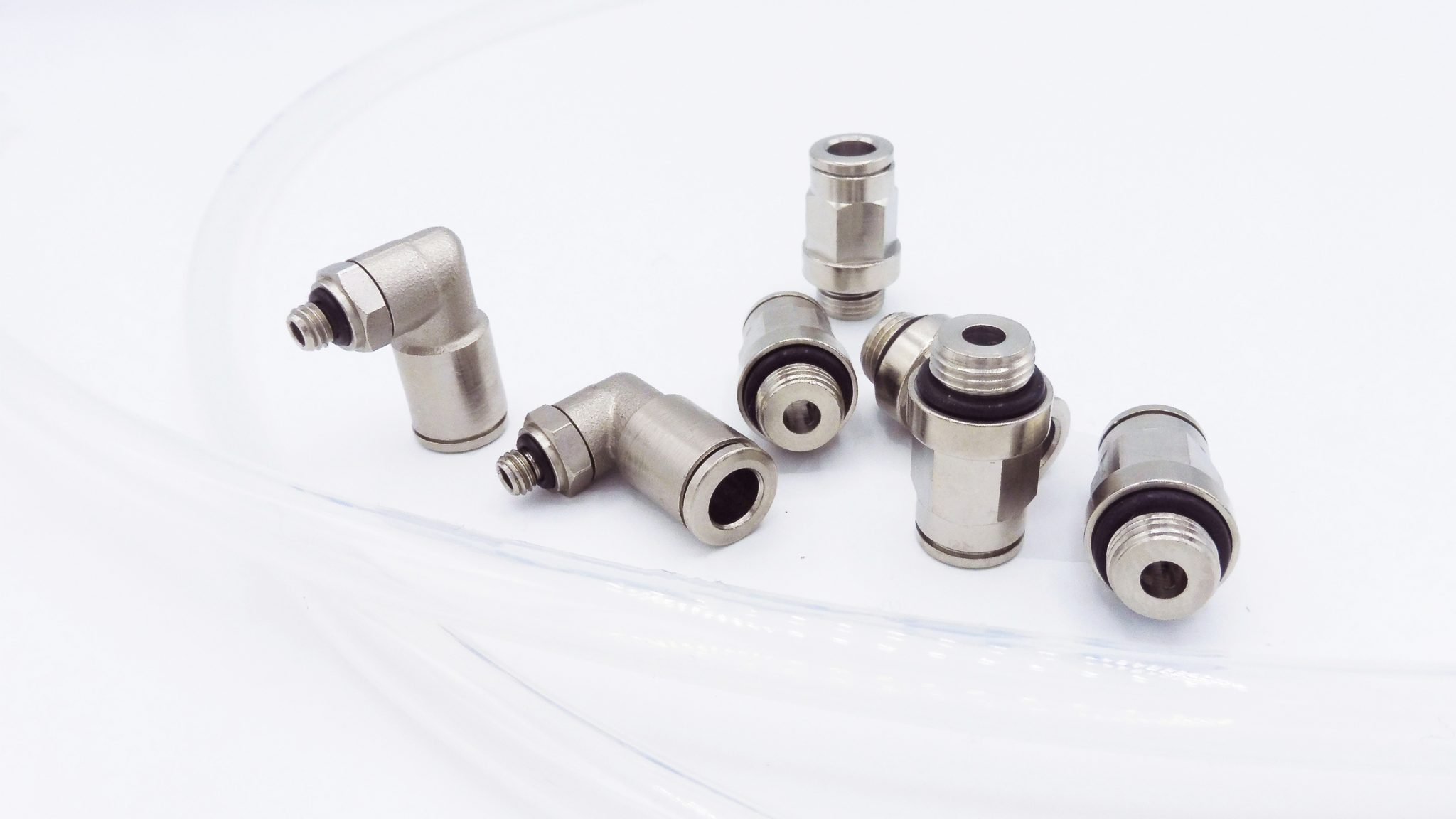

Hose fittings

Hose fittings straight - for hose Ø 6 mm

Art.-No. Description Material Fig.
LAT 7097 Hose adapter M5 Brass nickel-plated Schlauchanschlussstück M5a
LAT 7084 Hose adapter M6 Brass nickel-plated Schlauchanschlussstück M6a
LAT 7085 Hose adapter M6 x 0,75 Brass nickel-plated Schlauchanschlussstück M6 x 0,75a
LAT 7086 Hose adapter M8 x 1 Brass nickel-plated Schlauchanschlussstück M8 x 1a
LAT 7087 Hose adapter M10 x 1 Brass nickel-plated Schlauchanschlussstück M10 x 1a
LAT 7076 Hose adapter 1/8"a Brass nickel-plated Schlauchanschlussstück 1/8
LAT 7079 Hose adapter 1/4"a Brass nickel-plated Schlauchanschlussstück 1/4



Hose fittings angled - for hose Ø 6 mm (swivel screw-fitting)

Art.-No. Description Material Fig.
LAT 7097 G Hose adapter M5 angled Brass nickel-plated Schlauchanschlussstück M5a gewinkelt
LAT 7084 G Hose adapter M6 angled Brass nickel-plated Schlauchanschlussstück M6a gewinkelt
LAT 7085 G Hose adapter M6 x 0,75 angled Brass nickel-plated Schlauchanschlussstück M6 x 0,75a gewinkelt
LAT 7086 G Hose adapter M8 x 1a angled Brass nickel-plated Schlauchanschlussstück M8 x 1a gewinkelt
LAT 7087 G Hose adapter M10 x 1a angled Brass nickel-plated Schlauchanschlussstück M10 x 1a gewinkelt
LAT 7076 G Hose adapter 1/8"a angled Brass nickel-plated Schlauchanschlussstück 1/8
LAT 7079 G Hose adapter 1/4"a angled Brass nickel-plated Schlauchanschlussstück 1/4



High pressure hose

High pressure hose for Lubricus

Art.-No. Description Material Fig.
LAT 8002 High pressure hose for Lubricus, black, 6/4 mm, unfilled, per meter PA 12 Hochdruckschlauch für Lubricus
LAT 8002-01 High pressure hose for Lubricus, black, 6/4 mm, filled with multipurpose grease PA 12
LAT 8002-XX High pressure hose for Lubricus, black, 6/4 mm, filling on request PA 12
LAT 3017 Hose filling adapeter for hose 6mm Brass nickel-plated Schlauchfülladapter für Schlauch 6mm



Hose connectors

Hose connectors

Art.-No. Description Material Fig.
LAT 7100 Hose connectors 6mm to 6mm straight Brass nickel-plated Schlauchverbinder 6mm auf 6mm gerade
LAT 7100 G Hose connectors 6mm to 6mm angled Brass nickel-plated Schlauchverbinder 6mm auf 6mm gewinkelt
LAT 7101 Hose connectors 6mm to 8mm straight Brass nickel-plated Schlauchverbinder 6mm auf 8mm gerade
LAT 1050-6 Y-hose connector 6mm to 6mm Brass nickel-plated Y-Schlauchverbinder 6mm auf 6mm



Lubricus Splitter

Splitter for Lubricus (divider)

Art.-No. Description Material Fig.
LAT-Split-2 Splitter 1:2 for grease, straight Aluminium Splitter 1:2 für Fett, gerade
LAT-Split-3 Splitter 1:3 for grease, straight Aluminium Splitter 1:3 für Fett, gerade
LAT-Split-4 Splitter 1:3 for grease, straight Aluminium Splitter 1:3 für Fett, gerade

LAT-Split-2O Splitter 1:2 for oil, straight Aluminium Splitter 1:2 für �l, gerade
LAT-Split-3O Splitter 1:3 for oil, straight Aluminium Splitter 1:3 für �l, gerade
LAT-Split-4O Splitter 1:4 for oil, straight Aluminium Splitter 1:4 für �l, gerade

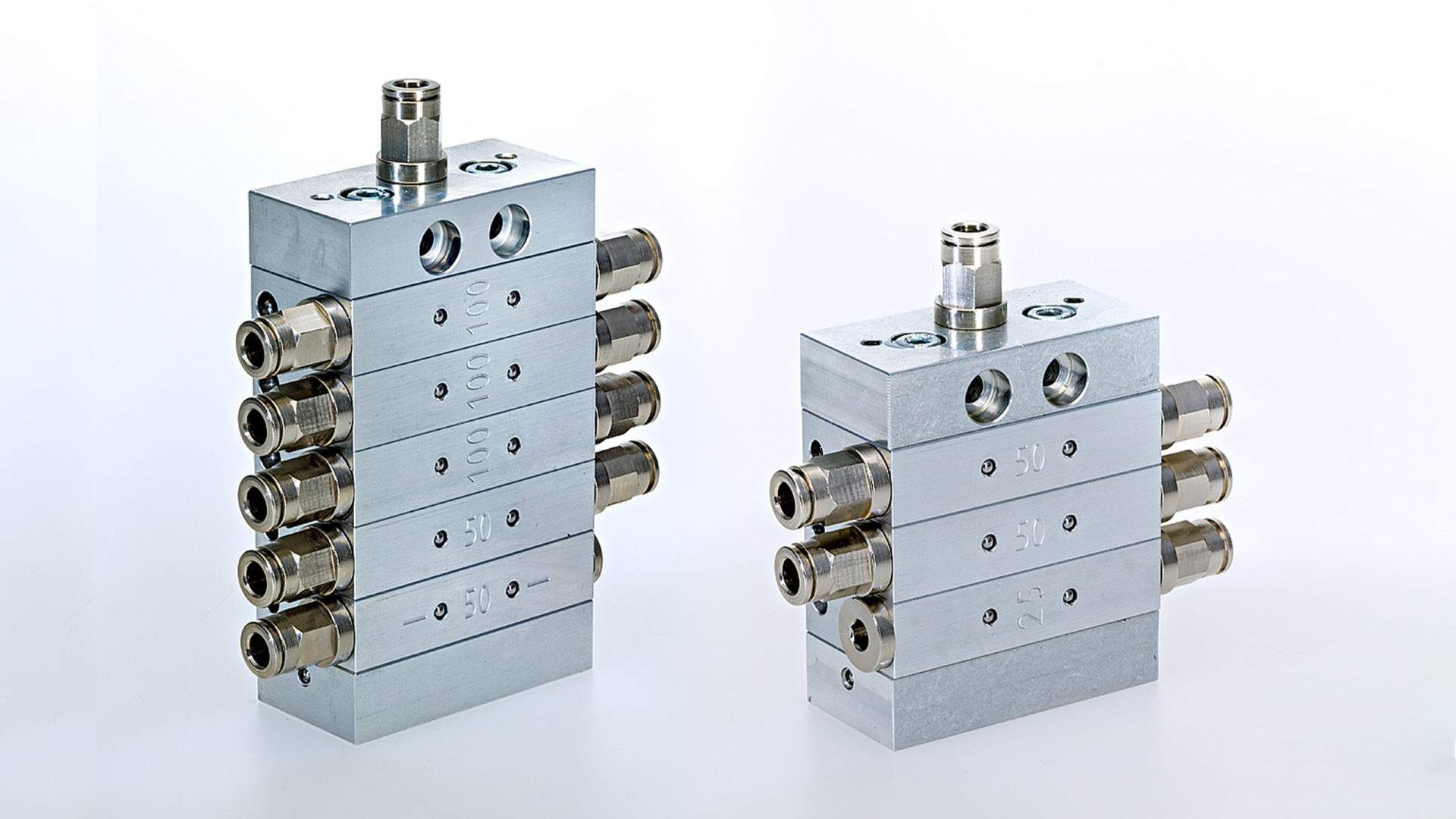

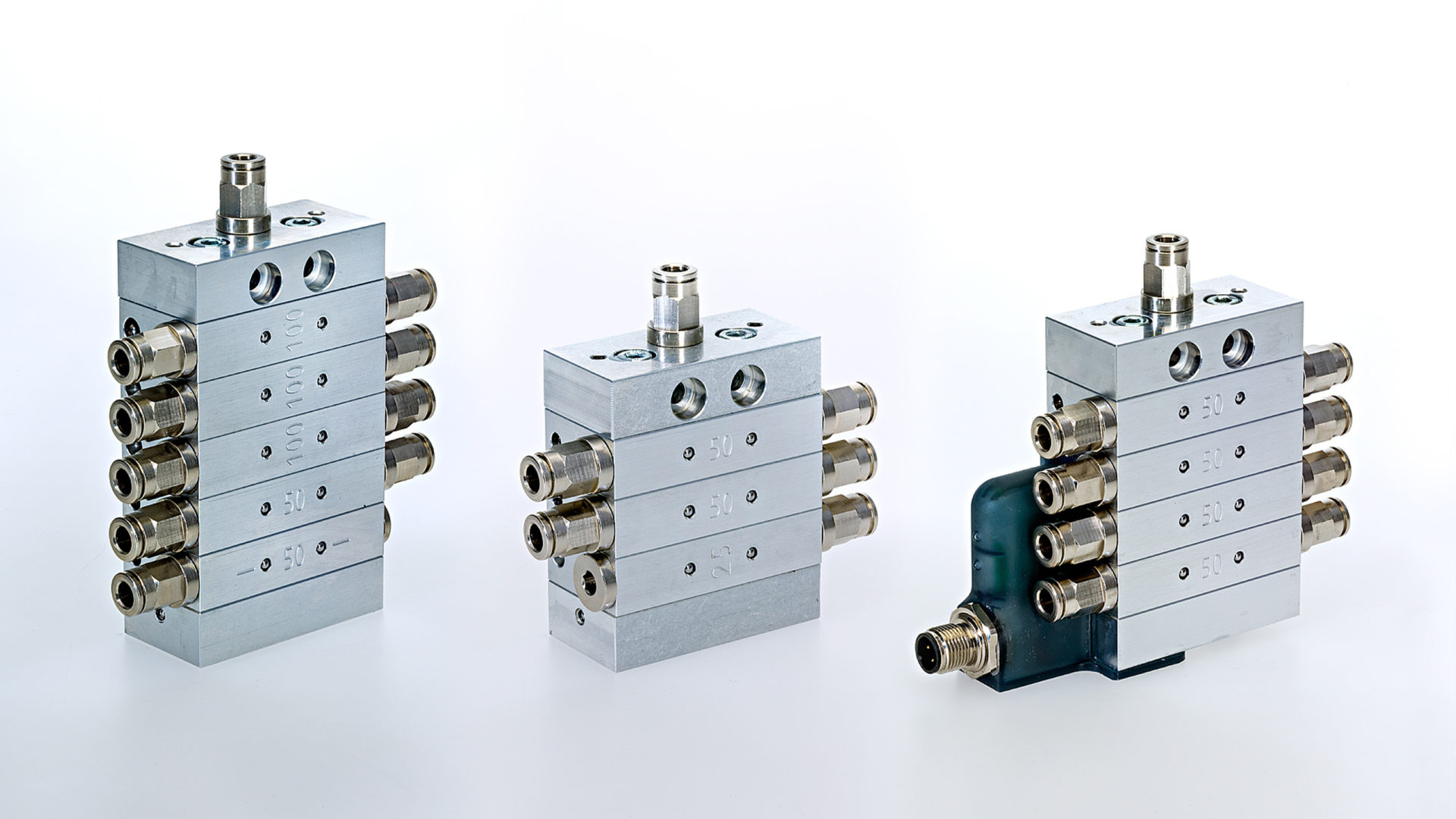

Progressive distributor

Progressive distributor

Art.-No. Description Material Fig.
LAT-PRV-2 Progressive distributor with 2 outlets Galvanized steel Progressivverteiler mit 2 Auslässen
LAT-PRV-3 Progressive distributor with 3 outlets Galvanized steel Progressivverteiler mit 3 Auslässen
LAT-PRV-4 Progressive distributor with 4 outlets Galvanized steel Progressivverteiler mit 4 Auslässen
LAT-PRV-5 Progressive distributor with 5 outlets Galvanized steel Progressivverteiler mit 5 Auslässen
LAT-PRV-6 Progressive distributor with 6 outlets Galvanized steel Progressivverteiler mit 6 Auslässen
LAT-PRV-7 Progressive distributor with 7 outlets Galvanized steel Progressivverteiler mit 7 Auslässen
LAT-PRV-8 Progressive distributor with 8 outlets Galvanized steel Progressivverteiler mit 8 Auslässen

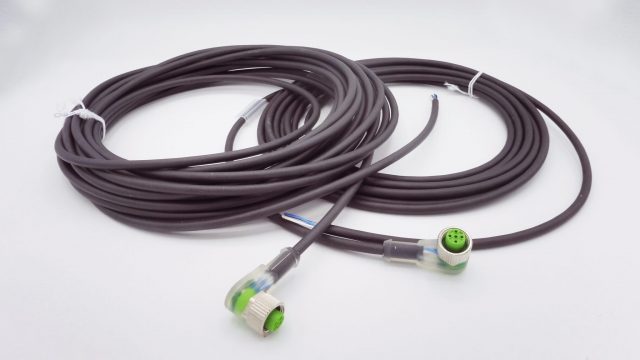

Connection cables

Connection cables for Lubricus (4-core, unshielded)

Art.-No. Description Fig.
LAT-WI-0-5 Connection cable, M12x1, open end, 5m Anschlusskabel, M12x1, offenes Ende, 5m
LAT-WI-0-10 Connection cable, M12x1, open end, 10m Anschlusskabel, M12x1, offenes Ende, 10m
LAT-WI-8-5 Connection cable, M12x1/M8x1, 5m (Connection Lubricus Type C with Lubricus Controller) Anschlusskabel, M12x1/M8x1, 5m
LAT-WI-8-10 Connection cable, M12x1/M8x1, 10m (Connection Lubricus Type C with Lubricus Controller) Anschlusskabel, M12x1/M8x1, 10m
LAT-WI-ST-LED-5 Connection cable, M12x1, open end, 5m with LED angled socket Anschlusskabel, M12x1, offenes Ende
LAT-WI-ST-LED-10 Connection cable, M12x1, open end, 10m with LED angled socket Anschlusskabel, M12x1, offenes Ende

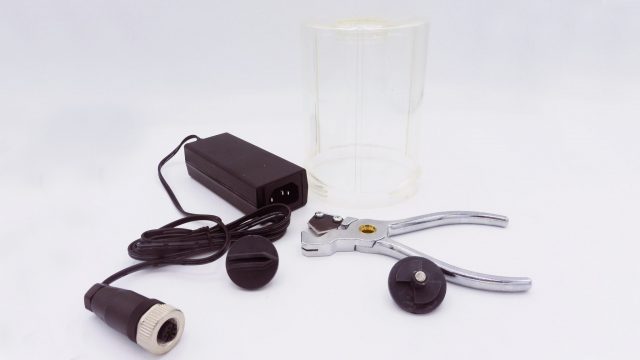

Other Accessories

Other Accessories

Art.-No. Description Fig.
LAT 8070 Housing for Lubricus Lubrication System (incl. piston and springs) Gehäuse für Lubricus Schmiersystem (inkl. Kolben und Federn)
LAT 8075 Programming/Activation key for Lubricus Lubrication System Magnetstift/Einschalter für Lubricus Schmiersystem
LAT 8077 Hose/Tube cutter 12mm Schlauchabschneider 12mm
LAT 8801 Brackets for Lubricus Lubrication System (2 brackets, 60x40x20mm) Befestigungswinkel
LAT 8080 Power supply/Transformer 230VAC/24VDC incl. M12x1 connector for LUB-V1/V2 and LUB-CE (EU-Version) Netzteil 230VAC/24VDC inkl. Netzteil (Ausführung EU)
